Support & logistics / Heavy repair tender

PATCHWORK.

Length × beam × height: 394 × 220 × 136 m
Exported: Oct 6, 2026
Full complement: Not yet established

Dimensions include attached equipment. Art and figures describe this exported edition; gameplay is still in development.

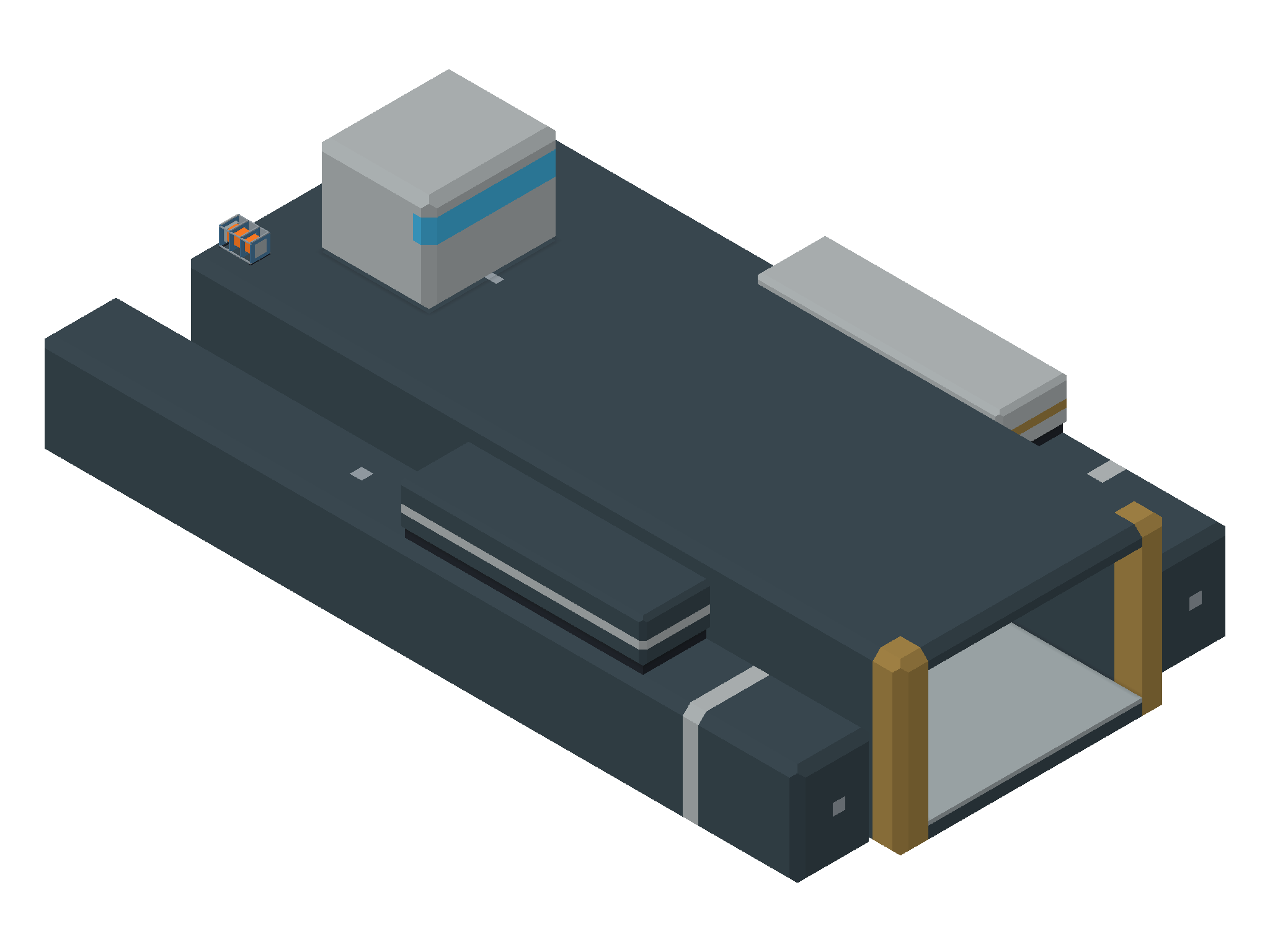

PATCHWORK — three-quarter view from above — Exact ship geometry / three-quarter view from above

Edition c739eb3b. Ship’s main page →

Edition & provenance

Recipe vf.patchwork.refit.1

Definition 4187C92A7B1E457C3FA860CFEABE092658445B47

Exact native FMesher surfaces; orthographic editorial lighting, authored palette; not an Unreal screenshot. No invented room plan or damage.

Gameplay acceptance: not yet established by this export.

Oct 6, 2026 · vf.patchwork.refit.1 · c739eb3b

Download this dossier’s data

PATCHWORK material-derived boarding sections — Boarding sections / tactical material regions, not rooms or deck plans

PATCHWORK side view — Side view / intact exported geometry

Purpose and tradeoffs

RoleDesign notes: Heavy repair tenderRegistrar source review for this recipe; context, not a live-instance measurement.
SummaryNot yet established: Not yet establishedRegistrar source review for this recipe; context, not a live-instance measurement.
TradeoffsNot yet established: Not yet establishedRegistrar design interpretation of the documented architecture; not a new capability.

Discuss purpose and tradeoffs →

Hull and dimensions

Assembled dimensionsMeasured export: 394 · 220 · 136 mX length, Y beam, Z height of all exported surface geometry, including attached equipment at its declared rest pose.
Bounds maxMeasured export: 182 · 110 · 100 mWhole assembled surface bounds in ship coordinates.
Bounds minMeasured export: -212 · -110 · -36 mWhole assembled surface bounds in ship coordinates.
Root dimensionsMeasured export: 394 · 220 · 136 mRoot-part bounds only; not the whole assembled ship.

Part indices: 0, 1, 2, 3, 4, 5, 6

Discuss hull and dimensions →

Mass and load

Crew and passengersNot yet established: Not yet establishedNot established for this exported configuration.
Embarked craftNot yet established: Not yet establishedNot established for this exported configuration.
Initial fuel and magazinesMeasured export: 705,400 kgInitial fuel and magazine stock only; not all mission payload.
LoadedNot yet established: Not yet establishedDefinition material includes modeled hardware; initial fuel/magazine stock is separate. Does not include crew, passengers, aircraft, escape capsules or other live payloads. Not a certified loaded mass.
MaterialMeasured export: 428,174,872.5 kgModeled material, including modeled hardware; not certified dry or loaded mass.

Discuss mass and load →

Crew and passengers

DepartmentsNot yet established: Not yet establishedDerived at normal initialization from occupied root span; exact assembled complement pending. See crew rules.
Full complementNot yet established: Not yet establishedDerived at normal initialization from occupied root span; exact assembled complement pending. See crew rules.
Minimum watchNot yet established: Not yet establishedNot established for this exported configuration.
Passenger placesNot yet established: Not yet establishedDerived at normal initialization from occupied root span; exact assembled complement pending. See crew rules.
People currently aboardNot yet established: Not yet establishedThis is an intact definition, not a populated live ship.

Discuss crew and passengers →

Propulsion and jump

Cruise targetMeasured export: 45 m/sAuthored cruise target; not a measured speed, acceleration or endurance guarantee.
EnduranceNot yet established: Not yet establishedNot established for this exported configuration.
Jump capabilityNot yet established: Not yet establishedBase hashes identify composition; complete jump hardware, range, spool, fuel and operating constraints need a reviewed specification.
Loaded accelerationNot yet established: Not yet establishedNot established for this exported configuration.

Attitude jets: #11, #12, #13, #14, #15, #16, #17, #18, #19, #20

Drives: #9, #10

Fuel stores: #7, #8

Discuss propulsion and jump →

Power

Authored ratingMeasured export: 400,000 WDefinition-level rated output; individual generators and consumers are in machinery. Not a guaranteed simultaneous power budget.
Simultaneous available powerNot yet established: Not yet establishedNot established for this exported configuration.

Distribution: 0, 2, 4, 20, 21

Reactors: #2, #4

Discuss power →

Weapons and ammunition

Damage basisDesign notes: WorkPerShot is the game contact-work budget. It is not explosive yield, joules or DPS.Registrar unit contract.
Mount arcsNot yet established: Not yet establishedFull traversable arcs, depression and obstruction limits are not exported. RailHalfArc is recorded separately where applicable.

Guns: None recorded in this field.

Magazines: #23, #24, #25

Discuss weapons and ammunition →

Armor and shields

Armor materialsNot yet established: Not yet establishedNot established for this exported configuration.
Shield operating limitsNot yet established: Not yet establishedNot established for this exported configuration.

Shield machines: None recorded in this field.

Discuss armor and shields →

Sensors and communications

Rated rangeMeasured export: 4,000 mAuthored sensor rating; not a guaranteed detection range.
Suite and coverageNot yet established: Not yet establishedThe complete receiver, processing, communications and observation rules need a configuration-specific review.

Discuss sensors and communications →

Bridge and command

ExposureNot yet established: Not yet establishedInternal/external classification requires a reviewed final assembly; a name or visible window is insufficient.

Control machines: #6

Discuss bridge and command →

Boarding and damage

Damaged state artNot yet established: Not yet establishedRequires a real damaged-ship snapshot; intact art must not be painted into invented damage.
OverlayDesign notes: Material-derived tactical sections, not authored rooms or deck plans.Native exporter contract.

Tactical sections: Index: 0; Name: FORE PORT; Purpose: Hull / support, Index: 1; Name: FORE CENTER; Purpose: Hull / support, Index: 2; Name: FORE STARBOARD; Purpose: Hull / support, Index: 3; Name: MID PORT; Purpose: Weapons, Index: 4; Name: MID CENTER; Purpose: Hull / support, Index: 5; Name: MID STARBOARD; Purpose: Weapons, Index: 6; Name: AFT PORT; Purpose: Engineering, Index: 7; Name: AFT CENTER; Purpose: Command, Index: 8; Name: AFT STARBOARD; Purpose: Engineering

Discuss boarding and damage →

Docking and bays

Collar and service interfacesNot yet established: Not yet establishedNot established for this exported configuration.
CompatibilityNot yet established: Not yet establishedA berth record or empty cavity does not certify all geometry, controllers, traffic, crew or service-store requirements.

Berths: None recorded in this field.

Discuss docking and bays →

Service and support

Service contractNot yet established: Not yet establishedTender, carrier, rescue, refueling and yard services require separate finite operating contracts. Do not infer capability from visible openings.

Discuss service and support →

Supported changes

Fixed architectureDesign notes: Authored hull, load paths and role hardware. No generic interchangeable mount interface is established by this entry.Registrar source review for this recipe; context, not a live-instance measurement.
ProposalsProposal: Alternative weapons or bay payloads need a reviewed physical compatibility and service contract.Design proposals only; not implemented or certified compatible.
SupportedDesign notes: Repair/replacement follows the exact installed definition. Separate research recipes are new manufactured fits, unless an explicit live upgrade says otherwise.Registrar source review for this recipe; context, not a live-instance measurement.

Discuss supported changes →

Inspect the machinery 25 recorded components

Actual component positions in this edition. Select a number to inspect its recorded hardware.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

1. Workshop Ember 1 cooling manifold feed

Power demand: 0 W
Position (X / Y / Z): -173.75 / -46.25 / 55.25 m
Power sources: None referenced
Dependencies: None referenced

2. Workshop Ember 1 reactor

Power demand: 40 W
Generation: 200,000 W
Position (X / Y / Z): -165.75 / -50.75 / 55.25 m
Power sources: None referenced
Dependencies: None referenced

3. Workshop Ember 2 cooling manifold feed

Power demand: 0 W
Position (X / Y / Z): -173.75 / 53.75 / 55.25 m
Power sources: None referenced
Dependencies: None referenced

4. Workshop Ember 2 reactor

Power demand: 40 W
Generation: 200,000 W
Position (X / Y / Z): -165.75 / 49.25 / 55.25 m
Power sources: None referenced
Dependencies: None referenced

5. Workshop power bus feed

Power demand: 1,500 W
Position (X / Y / Z): -119 / 1 / 47 m
Power sources: #2, #4
Dependencies: None referenced

6. Patchwork bridge control

Power demand: 3,000 W
Position (X / Y / Z): -123 / 1 / 59 m
Power sources: #2, #4
Dependencies: #5

7. Port propellant fuel_tank

Power demand: 0 W
Position (X / Y / Z): -119 / -89 / -5 m
Power sources: None referenced
Dependencies: None referenced

8. Starboard propellant fuel_tank

Power demand: 0 W
Position (X / Y / Z): -119 / 91 / -5 m
Power sources: None referenced
Dependencies: None referenced

9. Port heavy work drive drive

Power demand: 30,000 W
Thrust: 180,000,000 N
Exhaust speed: 300,000 m/s
Position (X / Y / Z): -179 / -89 / -5 m
Power sources: #2, #4
Dependencies: #5, #6, #7

10. Starboard heavy work drive drive

Power demand: 30,000 W
Thrust: 180,000,000 N
Exhaust speed: 300,000 m/s
Position (X / Y / Z): -179 / 91 / -5 m
Power sources: #2, #4
Dependencies: #5, #6, #8

11. Heavy workshop jet 1 jet

Power demand: 3,000 W
Thrust: 70,000,000 N
Exhaust speed: 225,000 m/s
Position (X / Y / Z): 157 / -105 / -5 m
Power sources: #2, #4
Dependencies: #5, #6, #7

12. Heavy workshop jet 2 jet

Power demand: 3,000 W
Thrust: 70,000,000 N
Exhaust speed: 225,000 m/s
Position (X / Y / Z): 157 / 107 / -5 m
Power sources: #2, #4
Dependencies: #5, #6, #8

13. Heavy workshop jet 3 jet

Power demand: 3,000 W
Thrust: 70,000,000 N
Exhaust speed: 225,000 m/s
Position (X / Y / Z): -179 / -105 / -5 m
Power sources: #2, #4
Dependencies: #5, #6, #7

14. Heavy workshop jet 4 jet

Power demand: 3,000 W
Thrust: 70,000,000 N
Exhaust speed: 225,000 m/s
Position (X / Y / Z): -179 / 107 / -5 m
Power sources: #2, #4
Dependencies: #5, #6, #8

15. Heavy workshop jet 5 jet

Power demand: 3,000 W
Thrust: 160,000,000 N
Exhaust speed: 225,000 m/s
Position (X / Y / Z): 169 / -89 / -5 m
Power sources: #2, #4
Dependencies: #5, #6, #7

16. Heavy workshop jet 6 jet

Power demand: 3,000 W
Thrust: 160,000,000 N
Exhaust speed: 225,000 m/s
Position (X / Y / Z): 169 / 91 / -5 m
Power sources: #2, #4
Dependencies: #5, #6, #8

17. Heavy workshop jet 7 jet

Power demand: 3,000 W
Thrust: 20,000,000 N
Exhaust speed: 225,000 m/s
Position (X / Y / Z): -69 / -89 / 17 m
Power sources: #2, #4
Dependencies: #5, #6, #7

18. Heavy workshop jet 8 jet

Power demand: 3,000 W
Thrust: 20,000,000 N
Exhaust speed: 225,000 m/s
Position (X / Y / Z): -69 / 91 / 17 m
Power sources: #2, #4
Dependencies: #5, #6, #8

19. Heavy workshop jet 9 jet

Power demand: 3,000 W
Thrust: 20,000,000 N
Exhaust speed: 225,000 m/s
Position (X / Y / Z): -69 / -89 / -27 m
Power sources: #2, #4
Dependencies: #5, #6, #7

20. Heavy workshop jet 10 jet

Power demand: 3,000 W
Thrust: 20,000,000 N
Exhaust speed: 225,000 m/s
Position (X / Y / Z): -69 / 91 / -27 m
Power sources: #2, #4
Dependencies: #5, #6, #8

21. Heavy service winch feed

Power demand: 8,000 W
Position (X / Y / Z): -179 / 1 / -5 m
Power sources: #2, #4
Dependencies: #5, #6

22. Replicators and installation tools feed

Power demand: 60,000 W
Position (X / Y / Z): -127 / 1 / -5 m
Power sources: #2, #4
Dependencies: #5, #6

23. Refit service drones magazine

Power demand: 0 W
Position (X / Y / Z): -157 / 1 / -13 m
Power sources: None referenced
Dependencies: None referenced

24. Refit components / kg magazine

Power demand: 0 W
Position (X / Y / Z): 31 / -89 / 33 m
Power sources: None referenced
Dependencies: None referenced

25. Refit metal / kg magazine

Power demand: 0 W
Position (X / Y / Z): 31 / 91 / 33 m
Power sources: None referenced
Dependencies: None referenced
